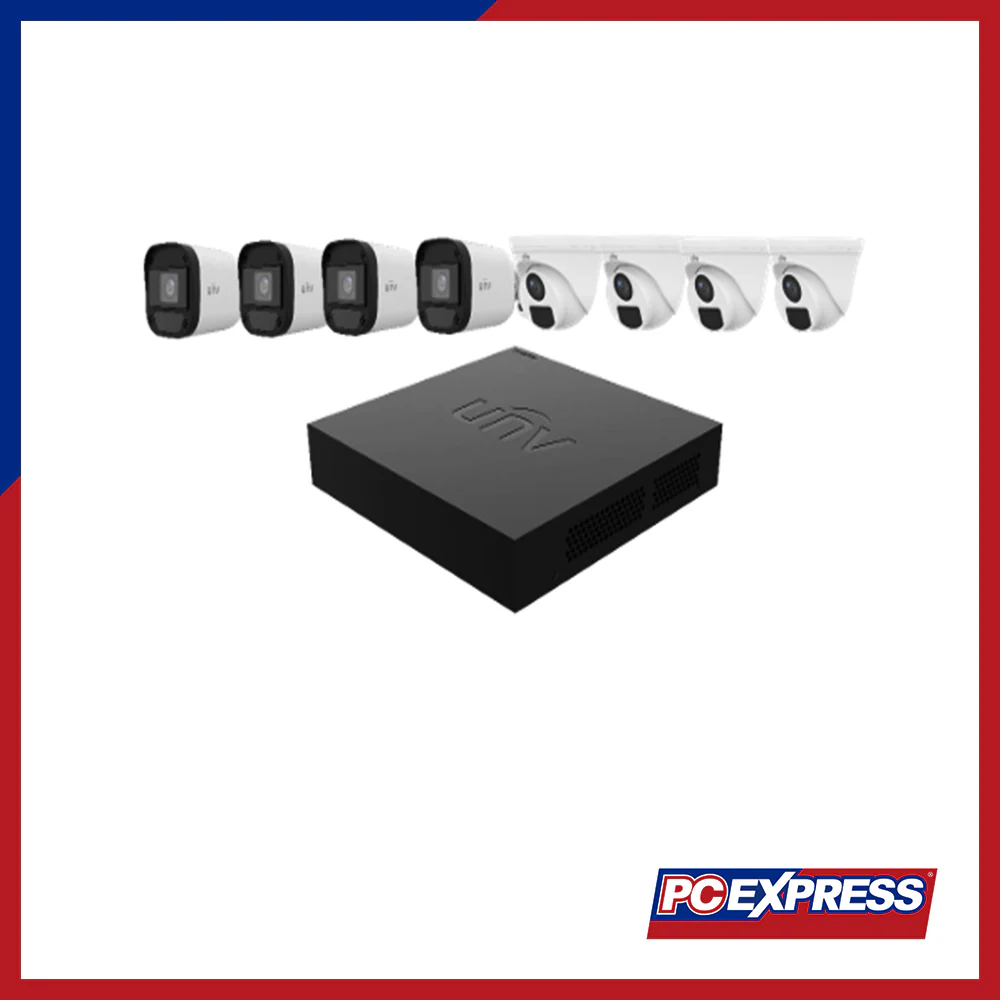

UNIVIEW XVR301-08F 8-Chanel Surveillance Analog Kit
SPECIFICATION
|
IP Video Input |
2-ch (All Models) |
|
Analog Video Input |
8-ch, BNC |
|
Max IP Video Input |
10-ch |
|
Supported Analog Camera Types |
AHD/TVI/CVI: 1080P@30fps, 720P@30fps; CVBS input supported |
|
HDMI Output |
1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
|
VGA Output |
Same as HDMI |
|
Live View Display |
1/4/6/8/9/16 |
|
Recording Resolution |
1080P Lite / 720P / D1 |
|
Recording Frame Rate |
|
|
Audio Sample Rate |
8 kHz, 16-bit per channel |
|
Audio Bit Rate |
64 Kbps per channel |
|
Decoding Capability |
|
|
Two-way Audio |
N/A |
|
FTP/Schedule/Event Snapshot |
08F: 8-ch FTP/Event Snapshot, no schedule snapshot |
|
Incoming Bandwidth |
24Mbps (40Mbps after analog conversion) |
|
Outgoing Bandwidth |
64Mbps |
|
Remote Users |
128 |
|
Protocols |
TCP/IP, P2P, UPnP, NTP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP |
|
Browser Support |
IE10/11, Chrome 45+, Edge 79+, Firefox 52+ |
|
Analog Smart Detection |
Ultra Motion Detection (UMD) |
|
VCA Search |
Behavior Search |
|
Smart Functions by XVR |
08F: 8-ch (UMD) |
|
General Alarm |
Motion |
|
Alert Alarm Types |
IP Conflict, Network Disconnected, Disk Offline/Abnormal/Full, Illegal Access, Snapshot/Recording Abnormal |
|
GUI Language |
20 languages: English, Spanish, Portuguese, Arabic, Russian, etc. |
|
SATA Interface |
1 SATA |
|
HDD Capacity |
Up to 6 TB per HDD |
|
Network Interface |
1× RJ45 10M/100M Ethernet |
|
USB Ports |
2× USB 2.0 (rear) |
|
Power Supply |
DC 12V / 1.5A |
|
Working Temperature |
–10℃ to 55℃ (14℉ to 131℉) |
|
Working Humidity |
≤ 90% RH (non-condensing) |
|
Power Consumption (no HDD) |
≤10W |
|
Weight (without HDD) |
≤0.6 kg / ≤0.6 kg / ≤0.85 kg |
|
Dimensions (W × D × H) |
04F & 08F: 190 × 202 × 42 mm |
|
Certifications |
CE, FCC, UL, RoHS, WEEE |
|
CE Standards |
EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
|
FCC Standard |
Part 15 Subpart B |
