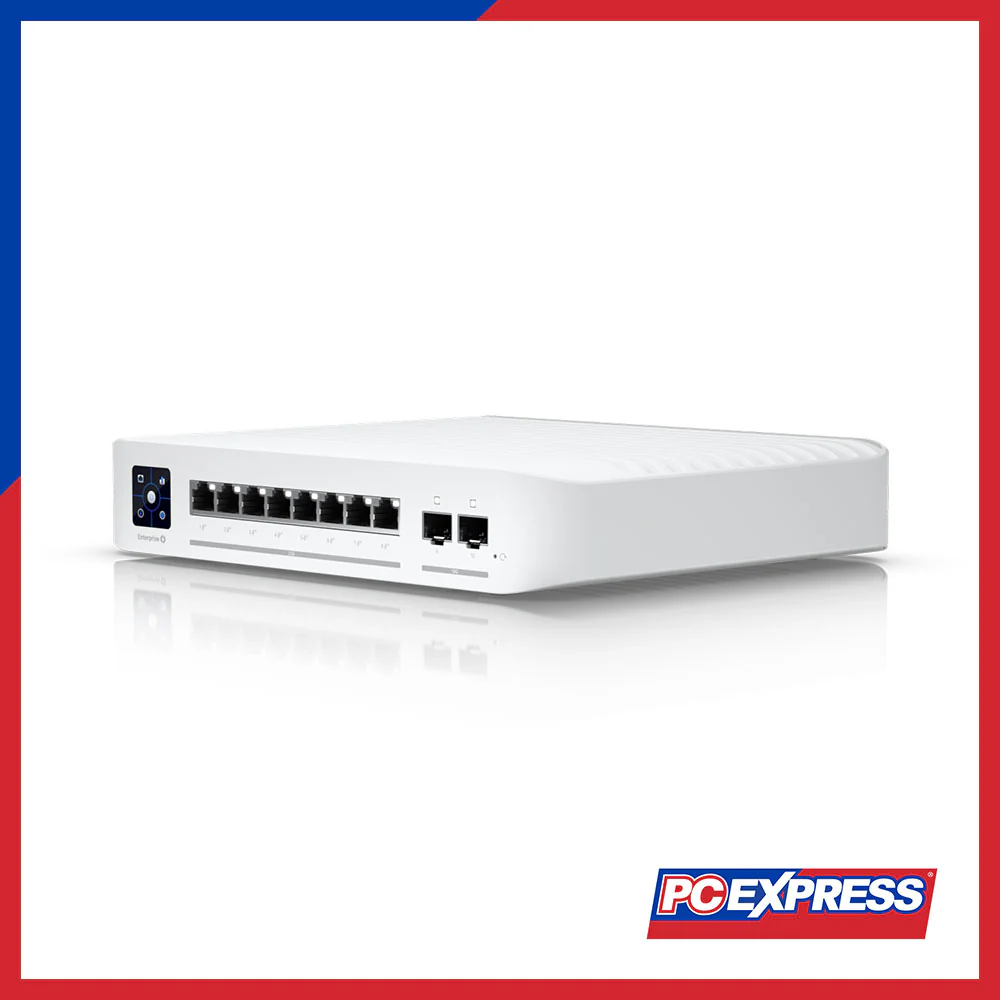

UBIQUITI USW-Enterprise-8-PoE Switch

Mechanical

Dimensions

200 x 248 x 44 mm (7.9 x 9.8 x 1.7")

Weight

2.4 kg (5.3 lb)

Enclosure Material

Polycarbonate

Mount Material

Polycarbonate

Mounting

Desktop-mountable (Do not physically stack the USW-Enterprise-8-PoE)

Hardware

Management Interface

Ethernet In-Band

Networking Interface

(8) 2.5 GbE RJ45 ports
(2) 10G SFP+ ports

PoE Interface

(8) PoE/PoE+ (Pins 1, 2+; 3, 6-)

Total Non-Blocking Throughput

40 Gbps

Switching Capacity

80 Gbps

Forwarding Rate

59.52 Mpps

Power Method

Universal input, 100–240V AC, 2A Max., 50/60 Hz

Power Supply

AC/DC, internal, 150W

Supported Voltage Range

100–240V AC

Total Available PoE

120W

Max. PoE+ Wattage per Port by PSE

32W

Voltage Range PoE Mode

PoE: 44–57V
PoE+: 50–57V

LCM Display

(1) 1.3" color touchscreen

ESD/EMP Protection

Air: ± 16kV, contact: ± 12kV

Environmental

Operating Temperature

-5 to 45° C (23 to 113° F)

Operating Humidity

10 to 90% non-condensing

Certifications

CE, FCC, IC

Switching Features

Layer 2 Features

IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast/broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping/guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs

Layer 3 Features

DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on the same switch
Static routing between local networks

LEDs

System

Status

Ethernet

Link/activity

SFP+

Link/activity

Application Requirements

UniFi Network: Version 6.3.51 and later
