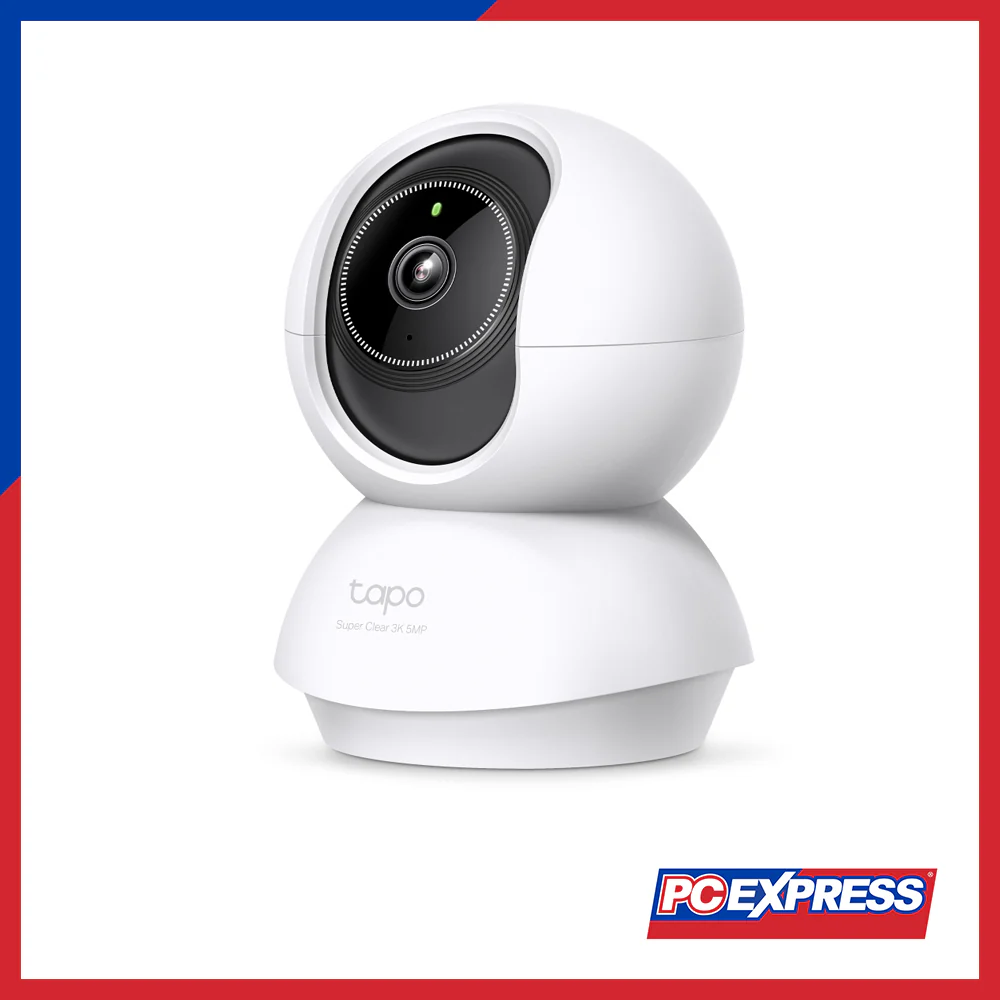

TP-LINK Tapo C230 Pan/Tilt AI Home Security Wi-Fi Camera
SPECIFICATION
|
CAMERA |
|
|
Image Sensor |
1/3″ Progressive Scan CMOS Starlight Sensor |
|
Lens |
• Focal Length: 4 mm |
|
Motion Range |
• Pan: 340° mechanical (360° coverage) |
|
Night Vision |
850 nm IR LED (up to 40 ft / 12 m) |
|
Interface & Button |
• 1× RESET Button |
|
VIDEO & AUDIO |
|
|
Maximum Resolution |
3K 5 MP (2880×1620 px) |
|
Frame Rate |
15/20/25/30 fps (default 15 fps) |
|
Video Compression |
H.264 |
|
Live View |
Yes |
|
Image Enhancement |
• 3D DNR |
|
Audio I/O |
Built‑in Microphone & Speaker |
|
Audio Communication |
Two‑Way Audio with Noise Cancellation |
|
Siren Volume |
99 dB (measured at 4 in / 10 cm) |
|
STORAGE |
|
|
Local Storage |
MicroSD card slot on camera (up to 512 GB) |
|
Cloud Storage |
Tapo Care Cloud Storage (subscription required) |
|
DETECTION & NOTIFICATIONS |
|
|
AI Detection |
• Motion Detection |
|
Activity Zones |
Yes |
|
Output Notification |
• System Notification |
|
NETWORK |
|
|
Network Connectivity |
Wi‑Fi (IEEE 802.11b/g/n, 2.4 GHz) |
|
RTSP |
Yes |
|
ONVIF |
Yes |
|
SECURITY |
|
|
Security |
• On‑Device Machine Learning |
|
POWER |
|
|
Power Source |
9 V DC Power Adapter |
|
Input Voltage |
100–240 V, 50/60 Hz |
|
Output Voltage |
9 V ⎓ 0.6 A (DC) |
|
GENERAL |
|
|
Smart Integration |
Google Assistant, Amazon Alexa |
|
Mounting Options |
Tabletop, Ceiling |
|
Operating Temperature |
0 ℃ – 40 ℃ |
|
Storage Temperature |
–20 ℃ – 60 ℃ |
|
Operating Humidity |
10 % – 90 % RH, non‑condensing |
|
Storage Humidity |
5 % – 90 % RH, non‑condensing |
|
Dimensions (W × D × H) |
3.36 × 3.42 × 4.63 in (85.4 × 86.8 × 117.7 mm) |
|
Package Content |
• Tapo C230 Camera |
|
Certifications |
CE, FCC, RCM, WEEE, EAC |
