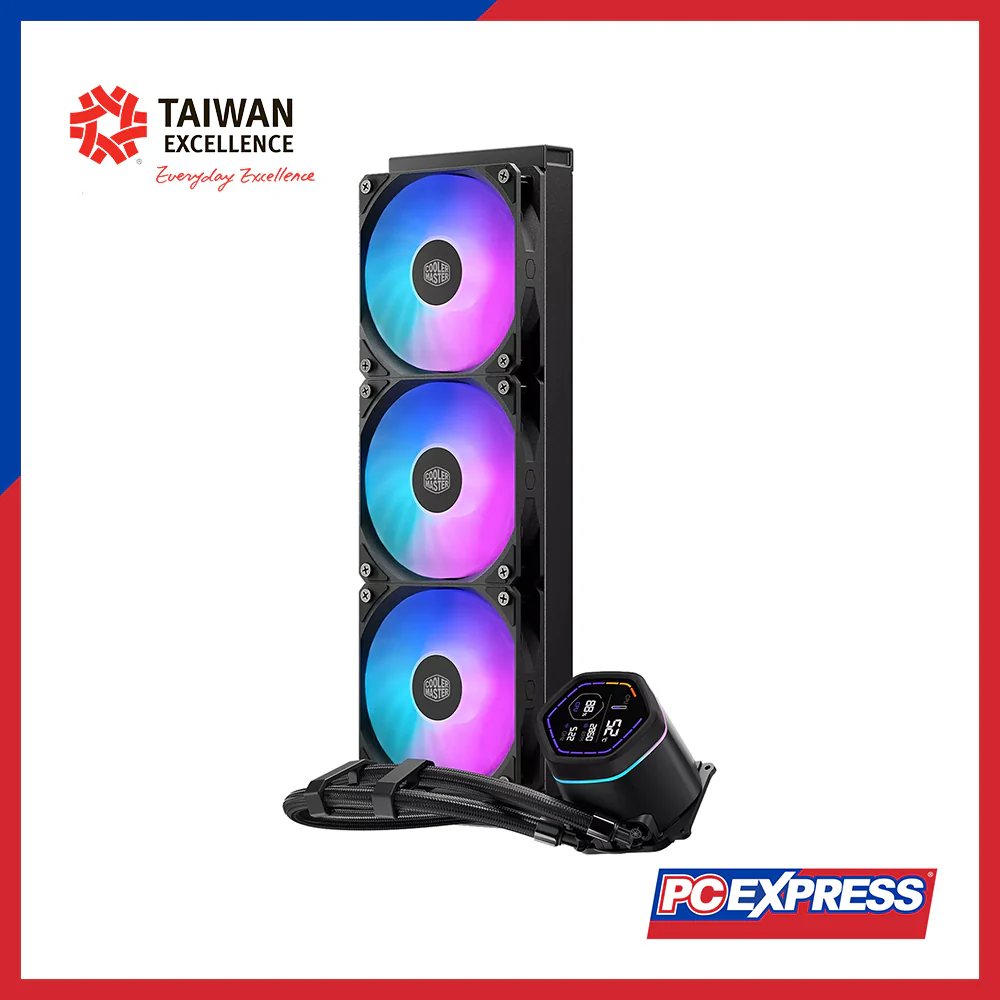

COOLER MASTER Master Liquid Core Nex Digital 360 (MLX-D36M-A18PA-RD) ARGB Liquid CPU Cooler Fan - Black
COOLER MASTER Master Liquid Core Nex Digital 360 (MLX-D36M-A18PA-RD) ARGB Liquid CPU Cooler Fan - Black
SPECIFICATION
|
Series |
MasterLiquid |
|
Cooler Type |
Liquid Cooler |
|
Radiator Size Options |
360mm |
|
Product Number (360 Black) |
MLX-D36M-A18PA-RD |
|
CPU Socket (Intel®) |
LGA 1851 / 1700 / 1200 / 1156 / 1155 / 1151 / 1150 |
|
CPU Socket (AMD®) |
AM5 / AM4 |
|
Radiator Material |
Aluminum |
|
Radiator Dimensions (240) |
277 x 119.6 x 27.2 mm (10.9 x 4.71 x 1.1 inch) |
|
Radiator Dimensions (360) |
394 x 119.6 x 27.2 mm (15.5 x 4.7 x 1.1 inch) |
|
Pump Dimensions |
83.6 x 78.5 x 68.6 mm (3.3 x 3.1 x 2.7 inch) |
|
Pump Lighting |
Addressable RGB |
|
Pump Speed |
3200 ±10% RPM |
|
Pump MTTF |
>35,000 Hours |
|
Pump Noise Level |
25 dBA (Max) |
|
Pump Rated Voltage |
12 VDC |
|
Pump Connector |
3-Pin ARGB + 4-Pin PWM |
|
Digital Panel Type |
LED Digital Display |
|
Digital Panel Display Area |
50.1 x 54.4 mm (2 x 2.1 inch) |
|
Digital Panel Luminance |
120 cd/m² |
|
Digital Panel Rated Voltage |
5 VDC |
|
Digital Panel Rated Current |
0.12 A ±10% |
|
Digital Panel Safety Current |
0.3 A ±20% |
|
Digital Panel Power Consumption |
0.6 W |
|
Digital Panel Connector |
USB 2.0 9-Pin |
|
Digital Panel Orientation |
Software (MasterCtrl) Adjustable |
|
Fan Quantity (240) |
2 PCS |
|
Fan Quantity (360) |
3 PCS |
|
Fan Dimensions |
120 x 120 x 25 mm (4.7 x 4.7 x 1 inch) |
|
Fan Lighting |
Addressable RGB |
|
Fan Speed |
650–1750 RPM ±10% |
|
Fan Airflow |
122.4 m³/h (71.9 CFM) Max |
|
Fan Air Pressure |
1.86 mmH₂O Max |
|
Fan MTTF |
>40,000 Hours |
|
Fan Noise Level |
27.2 dBA Max |
|
Fan Bearing Type |
Rifle Bearing |
|
Fan Connector |
7-Pin PWM + ARGB |
|
Fan Rated Voltage |
12 VDC |
|
Fan Rated Current |
0.26 A |
|
Fan Safety Current |
0.37 A |
|
Fan Power Consumption (Per Fan) |
3.12 W |
|
Fan Power Consumption (Total) |
7.2 W |
|
Tube Length |
400 mm |
